Description
Application Area - Stone Wool Partition Wall Board

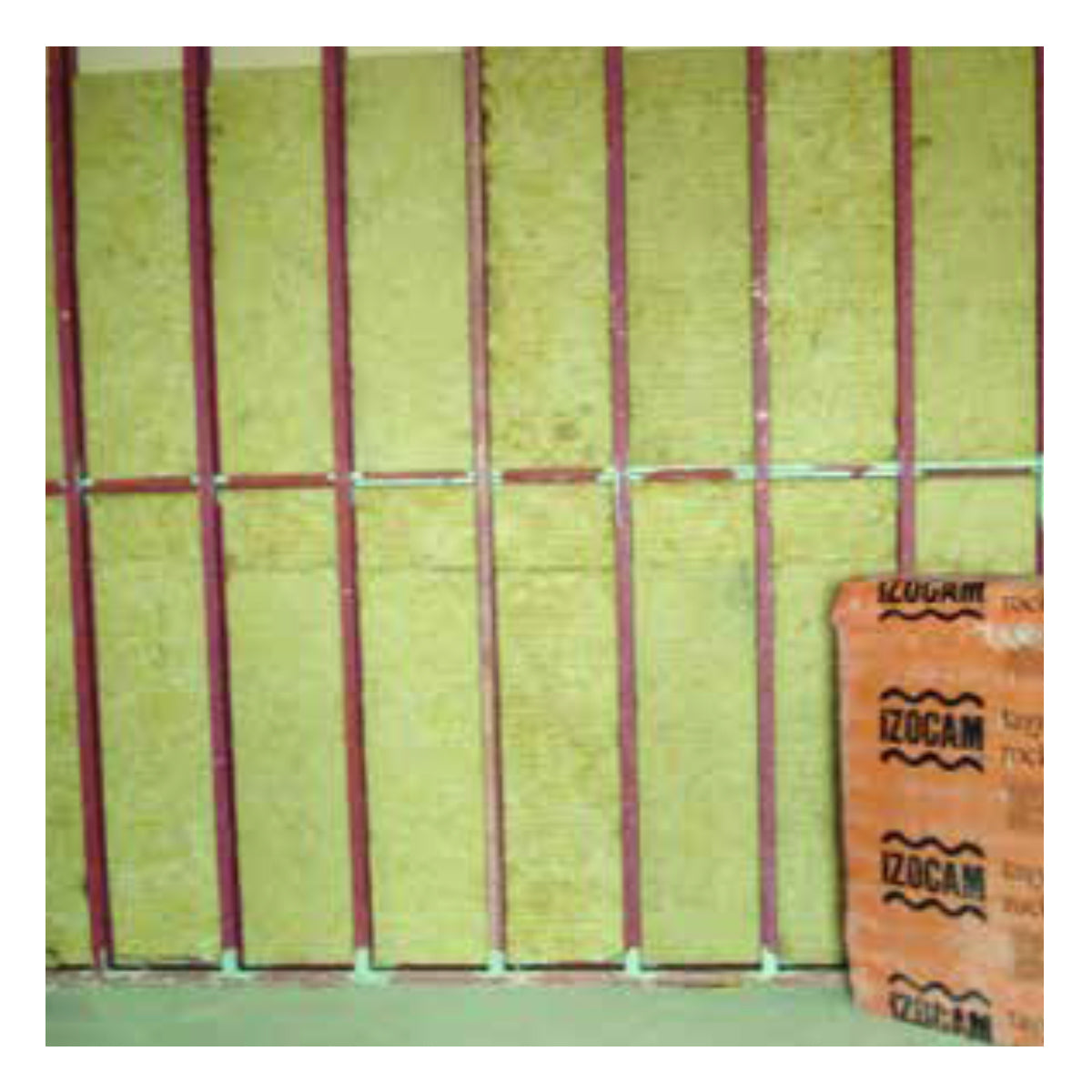

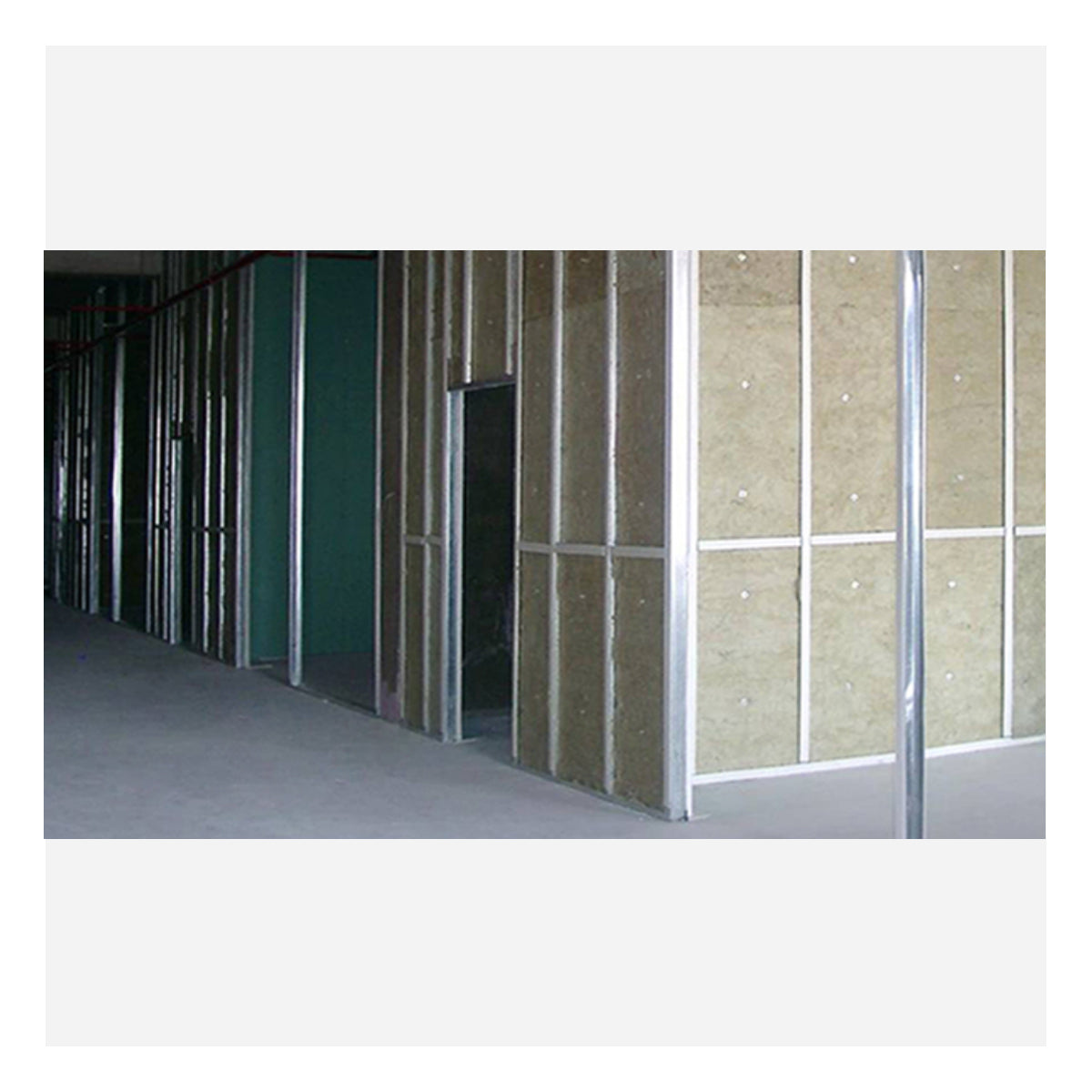

- Izocam Stone Wool Partition Wall Board is placed into the timber or metal construction.
- It is used for thermal and sound insulation and fire safety especially when it is applied at the partition walls of the office buildings.
- Depending on the application space, gypsum boards are fastened on the side facing the interior or on both sides by profiles.
- It is recommended to apply rubber tapes (Izocamtape) to the construction especially for the sound insulation applications in order to avoid sound bridges.
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance | Standard | ||||||||||||||
| Material | - | - | Stone Wool | - | TS EN 13162 | ||||||||||||||
| Material Type | - | - | ABL | ABL - Eco | - | - | |||||||||||||
| Density | ρ | kg/m3 | 52 | 40 | +/-10% | - | |||||||||||||
| Width | w | mm | 600 | +/-1,5% | TS EN 822 | ||||||||||||||
| Length | l | mm | 1200 | +/-2% | TS EN 822 | ||||||||||||||
| Thickness | t | mm | 30 | 40 | 50 | 60 | 80 | 100 | 120 | T4 * | TS EN 823 | ||||||||
| Facing | - | - | Unfaced | - | - | ||||||||||||||
| Reaction to fire | - | - | A1 | - | EN 13501-1 | ||||||||||||||
| Squareness | Sb | mm/m | max. 5 | - | TS EN 824 | ||||||||||||||
| Flatness | Smax | mm | max. 6 | - | TS EN 825 | ||||||||||||||
| Dimensional Stability | Δεd | % | max. 1 | - | TS EN 1604 | ||||||||||||||
| Declared Thermal Conductivity (10 °C) | ʎD | W/m.K | 0.035 | 0.038 | - | TS EN 12667/12939 | |||||||||||||
| Thermal Resistance | ABL | RD | m2.K/W | 0,85 | 1.10 | 1.40 | 1.70 | 2.25 | 2.85 | 3.40 | - | TS EN 13162 | |||||||
| ABL-Eko | 0,75 | 1.05 | 1.30 | 1.55 | 2.10 | 2.60 | 3.15 | ||||||||||||
| Water Vapor Diffusion Resistance Coefficient | µ | - | 1 | - | TS EN 12086 | ||||||||||||||
| Short Term Water Absorption | Wp | kg/m2 | max. 1 | - | TS EN 1609 | ||||||||||||||
| Long Term Water Absorption with Diffusion | Wlp | kg/m2 | max. 3 | - | TS EN 12087 | ||||||||||||||
| Packaging Material | - | - | PE Film | - | - | ||||||||||||||
| Other Information | Boards could be coated with yellow/black glass tissue and aluminium foil. | ||||||||||||||||||
