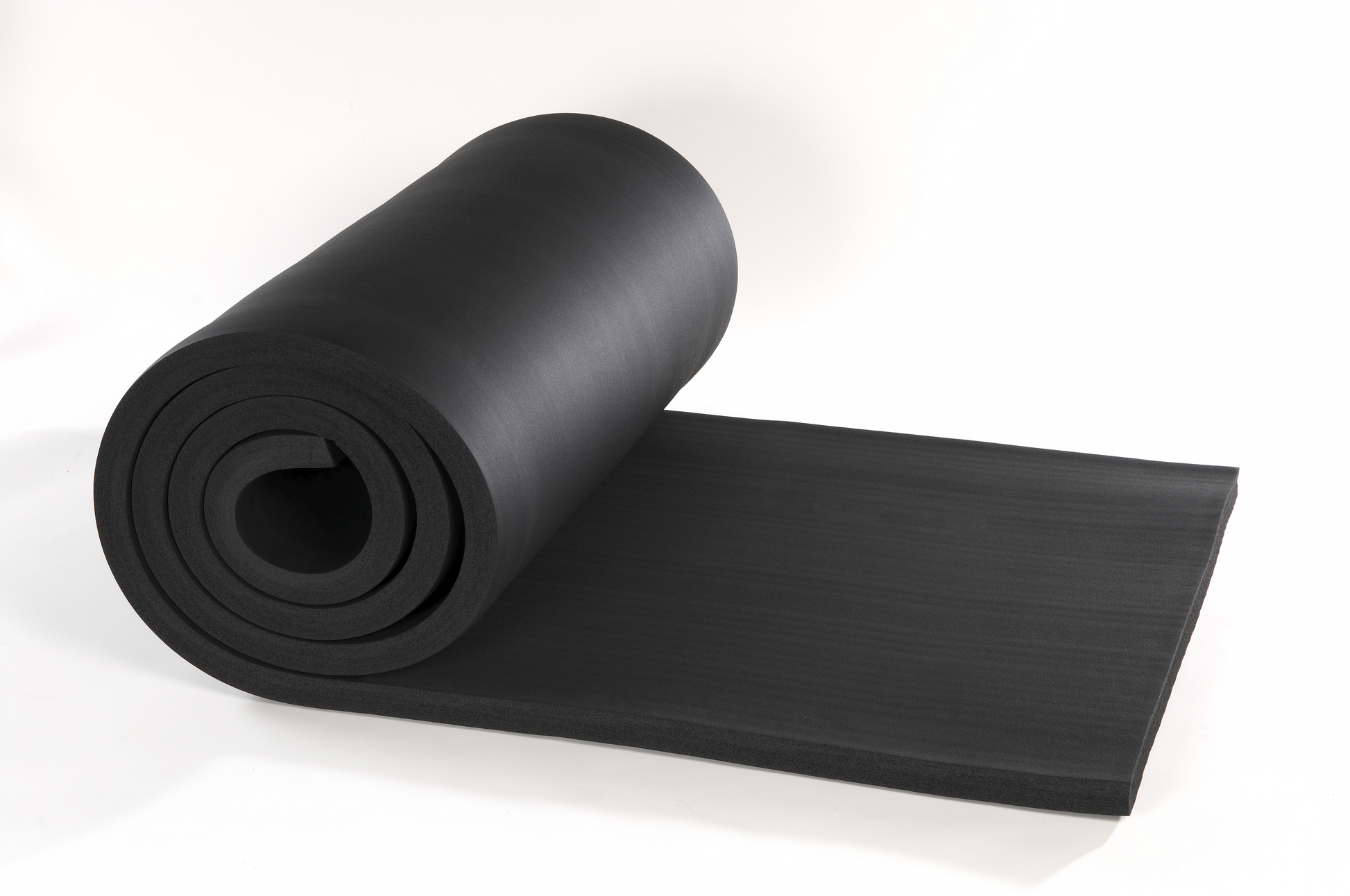

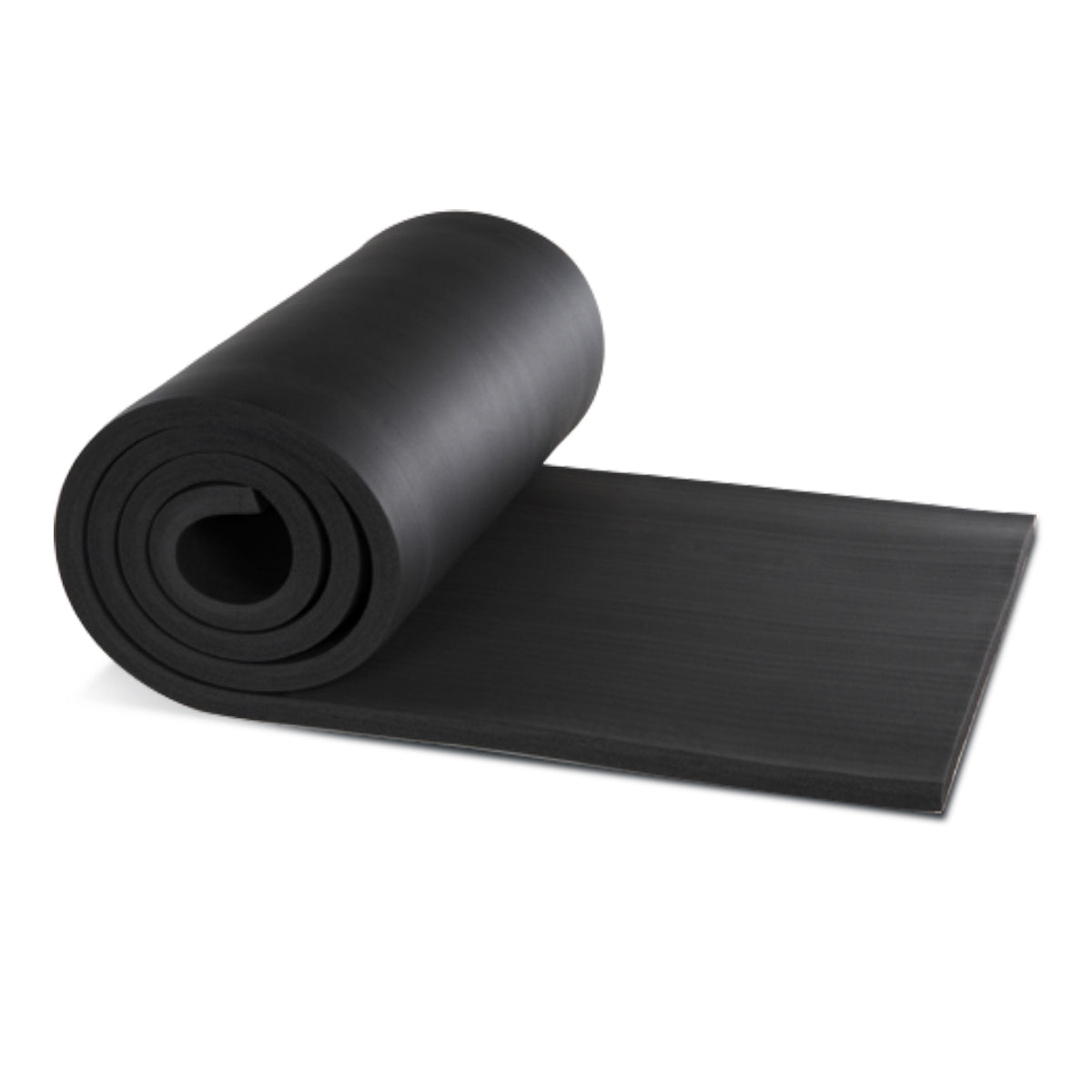

Optiflex Sheet

Optiflex Sheet

View full details

Description

It is an elastomeric rubber based insulation material in the form of sheet with closed cell structure. It is manufactured to be used for air conditioning, heating and cooling systems. It can be faced with aluminium foil and can be self-adhesive.

Application

It is used on the exterior surfaces of the ducts and large diameter pipe lines in the heating, cooling and air conditioning systems for thermal insulation and condensation control purposes. For the spaces where there is heat transfer by radiation, using products faced with aluminium foil is recommended. The sheets are adhered to the duct surface by using a special adhesive that İzocam suggests. Joints should be tightly sealed and they should be covered with insulation tape afterwards if necessary. Taping should not result in thickness loss. For the application of self adhesive sheets there is no need to use any adhesive. The application should be protected against distruption and rupture. For the applications exposed to the sun, definitely a protective coat or a protective paint should be used. For indoor spaces getting day lighting, the products faced with aluminium foil can be used without requiring any coating against UV affect. For the outdoor applications, the surface should be coated within 5 days.
  • Thermal insulation
  • Condensation control
  • CFC free
  • Environment friendly
  • Highly flexible
    tandard product dimensions dDxl (mm): 6x36000, 9x24000, 13x8000, 19x12000, 25x9000, 32x7000, 40x6000, 50x5000; b (mm):1000
    Safety Reminders for Loading, Unloading, Shipping and Storing
    • These operations should be done indoors in case of rainy weather conditions.
    • Loading and unloading should be done by (at least) two people.
    • The products should be wrapped by a waterproof cover during shipping.
    • When the packages piled in the truck body are being tied up hardpadding (wood, cardboard, etc.) should be put on the corners of thepackages to protect them against possible damages by ropes.
    • Only backshutter of the truck body should be opened during unloading.
    • Storage should be done indoors and the packages should be put over flatfloor.
    • Maximum 4 packages of the sheets should be superposed.
    • Packages should not be put into upright position.
    • Packages should not be stepped on and should not be used as steps.
    • Products should not be unloaded by pushing or throwing from the truck.
    • The truck should not be moved without wrapping and binding thepackages.
    • The products should not be exposed to sun.
    • Storage area should not be wet.Izocam is not responsible for any problem because of misprinting. Izocam, the manufacturer, reserves the right to alter product specifications without prior notice. Izocam also manufactures special products upon request. For your requirements, you are requested to contact our Export Department.

Download Product Brochure

Certificates

ISO-9001-2015-1

OPTIFLEX-ITT

ISO-45001-2018-1

ISO-50001-2018

ISO-14001-2015

Material Safety Forms

Technical Specifications



Properties Symbol Unit Description Tolerance Standard
Material - - Elastomeric Rubber Foam - TS EN 14303
Material Type - - Optiflex Sheet Optiflex AL Optiflex KY Optiflex AL-KY - -
Facing - - Unfaced Al-foil (18µ, reinforced, non-combustable) Self adhesive film Al-foil, Self adhesive film - -
Reaction to fire - - E - TS EN 13501-1
Max. Service Temperature - °C -50 / 105 -50 / 85 - -
Lenght l mm 3000 ≤ L ≤ 60000 ± 1,5 % EN 822
Width w mm 1000 - 1200 ± 2 % EN 822
Thickness t mm 6 ≤ dD  ≤ 32 6 < dD  ≤ 50 * dD  ≤ 6 ±1,0 EN 823
6<dD≤19 ±1,5
dD  > 19 ±2,0
Declared Thermal Conductivity T °C -20 0 20 40 60 80 - TS EN 12667
λD W/m.K 0,031 0,034 0,036 0,037 0,038 0,043
Water Vapor Diffusion Resistance Factor µ - ≥ 5000 - EN 12086
Resistance to Olis - - Good - -
Resistance to Weather Conditions - - Good - -
Flexibility - - Excellent - -
Fungal Growth - - None - -
Packaging Material - - PE Film - -
Other Information It is appropriate to DIN 1988/7 relating to corrosion. Product contains less than 0,2 % ammonium and less than 0,05 % chlorine ion that dissoluted in water.
