Description

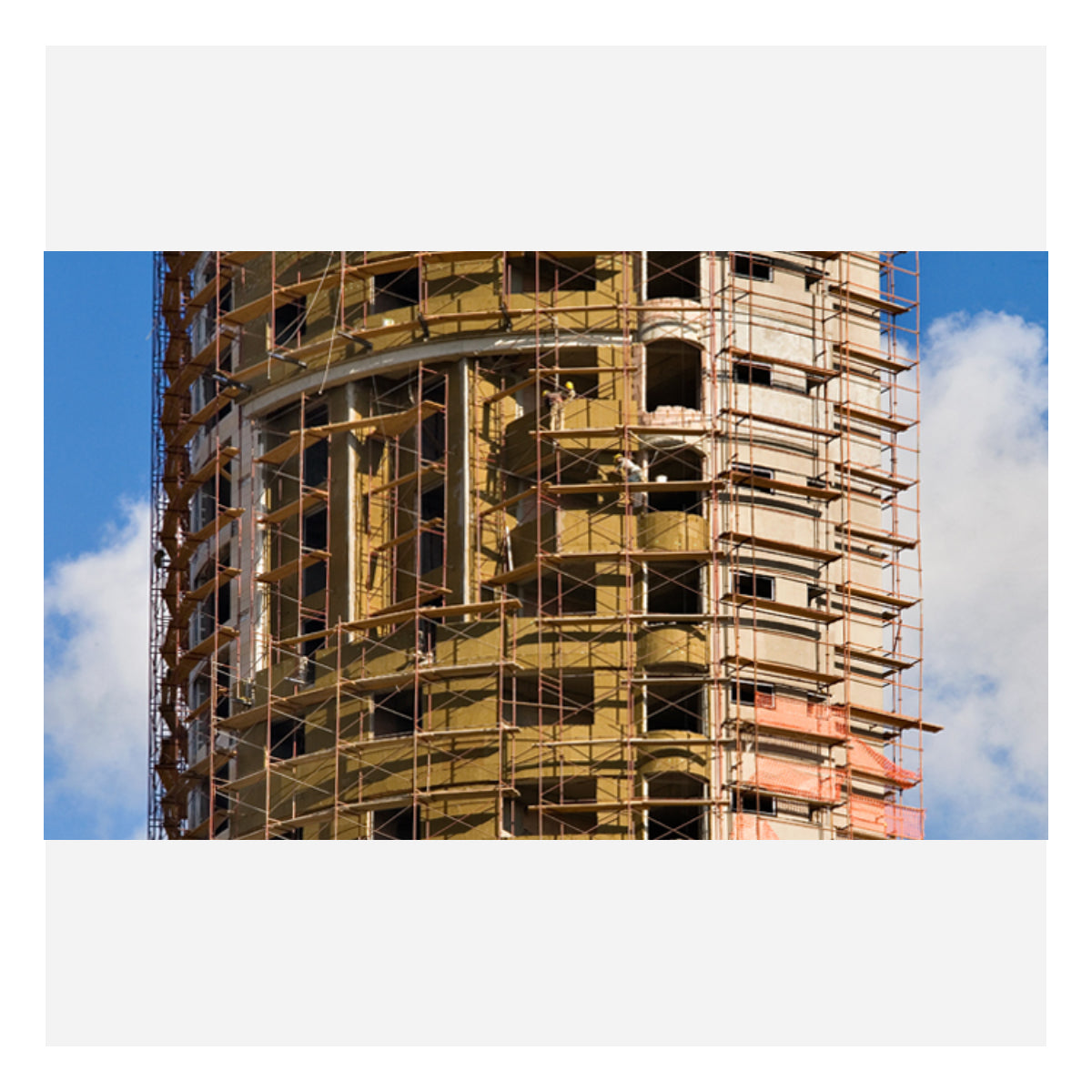

Manto Stone Wool Application Area
- First of all, the surface to be used in the application should be checked to ensure that it is smooth and dry.
- If the surface is rough and with scrapes it should be cleaned by brushing.
- Unevenness, major defects and cracks should be repaired by means of plaster.
- The boards can be adhered to the surface using cement based fixing mortar by different methods.
- The boards should be laid down without any gap side by side on the wall surface shortly after spreading fixing mortar over the boards.
- The adhesive should not be spread near the edges of the board in order to prevent the adhesive getting into the joints.
- The boards are laid down in an alternating pattern at the facades and the corners. When the fixing mortar is completely dry (approximately after 24 hours) the anchoring process can be started.
- Special insulation fastening anchors are used which are chosen with respect to the wall properties.
- Tiled surfaces or surfaces with old plaster are not suitable for anchoring.
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance | Standard | |||||||||
| Material | - | - | Stone Wool | - | TS EN 13162 | |||||||||

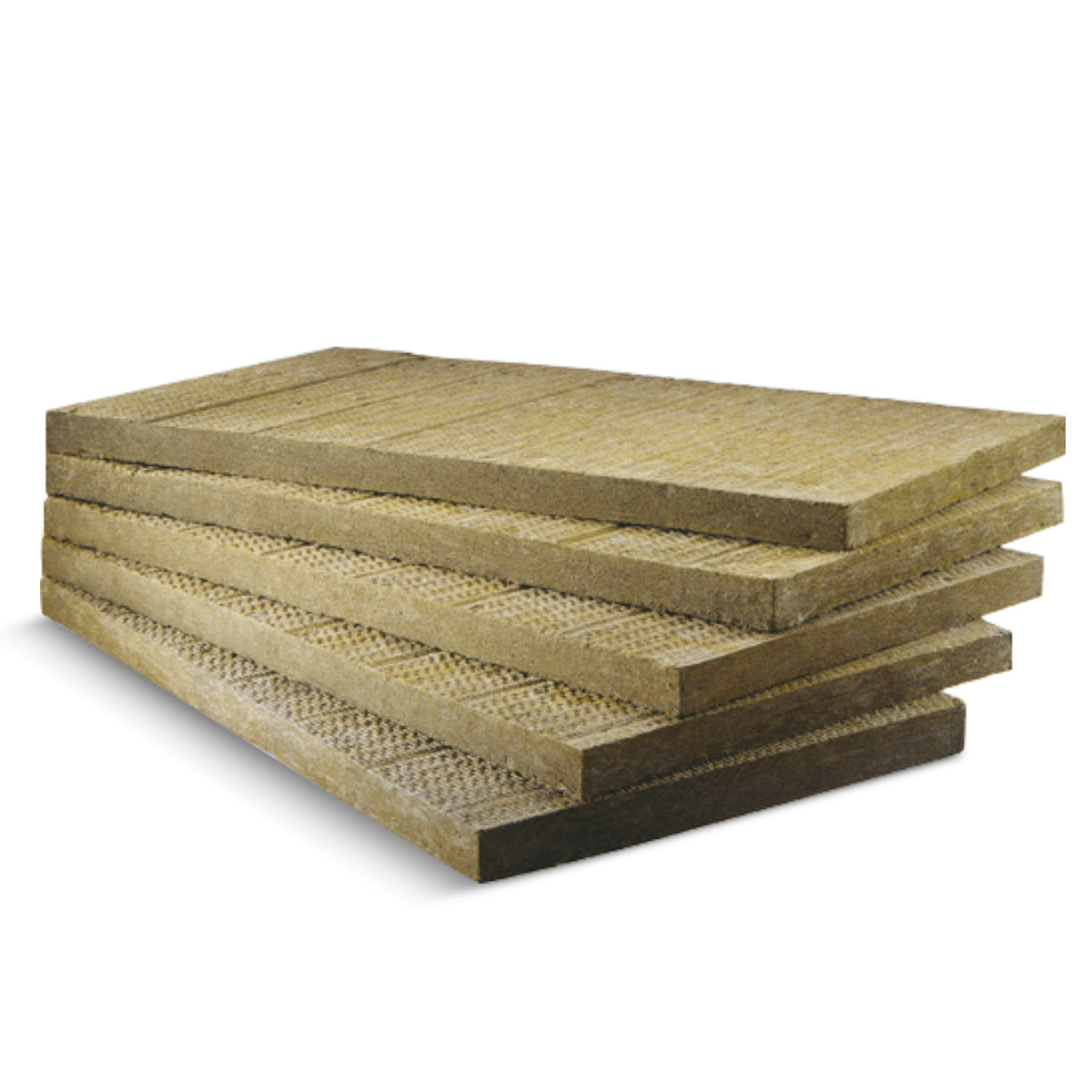

| Material Type | - | - | Manto Stone Wool | - | - | |||||||||
| Density | ρ | kg/m3 | 150 | +/- % 7 | - | |||||||||
| Width | w | mm | 600 | +/-1,5% | TS EN 822 | |||||||||
| Length | l | - | 1200 | +/-2% | TS EN 822 | |||||||||
| Thickness | t | mm | 30 | 40 | 50 | 60 | 80 | 100 | 120 | T5 * | TS EN 823 | |||
| Facing | - | - | Unfaced | - | - | |||||||||
| Reaction to fire | - | - | A1 | - | TS EN 13501-1 | |||||||||
| Squareness | Sb | mm/m | max.5 | - | TS EN 824 | |||||||||
| Flatness | Smax | mm | max.6 | - | TS EN 825 | |||||||||
| Dimensional Stability | Δεd | % | max.1 | - | TS EN 1604 | |||||||||
| Declared Thermal Conductivity (10°C) | ʎD | W/mK | 0.039 | - | TS EN 12667/12939 | |||||||||
| Thermal Resistance | RD | m2K/W | 0,75 | 1.00 | 1.25 | 1.50 | 2.05 | 2.55 | 3.05 | |||||
| Water Vapor Diffusion Resistance Coefficient ** | µ | - | 1 | - | TS EN 12086 | |||||||||
| Pulling Strength | σmt | kPa | min. 7,5 | min. 10 | min. 15 | - | TS EN 1607 | |||||||
| Compressive Strength | σ10 | kPa | min. 25 | min. 30 | TS EN 826 | |||||||||
| Long Term Water Absorption | Wlp | kg/m2 | max. 3 | - | TS EN 12087 | |||||||||
| Short Term Water Absorption | Wp | kg/m2 | max. 1 | - | TS EN 1609 | |||||||||
| Packaging Material | - | - | PE Film | - | - | |||||||||
| Other Information | Manto Stone Wool insulation boards are manufactured regarding to the technical specifications of insulation boards stated in TS EN 13500 for “Mineral wool (stone wool) based external thermal insulation composite systems” and in compliance with TS 901-1 EN 13162 standard. | |||||||||||||
Shipping & Delivery
Shipping is free for orders of 120 m² and above. For orders below 120 m², the shipping cost will be calculated accordingly. Please contact us for more details.
