Description

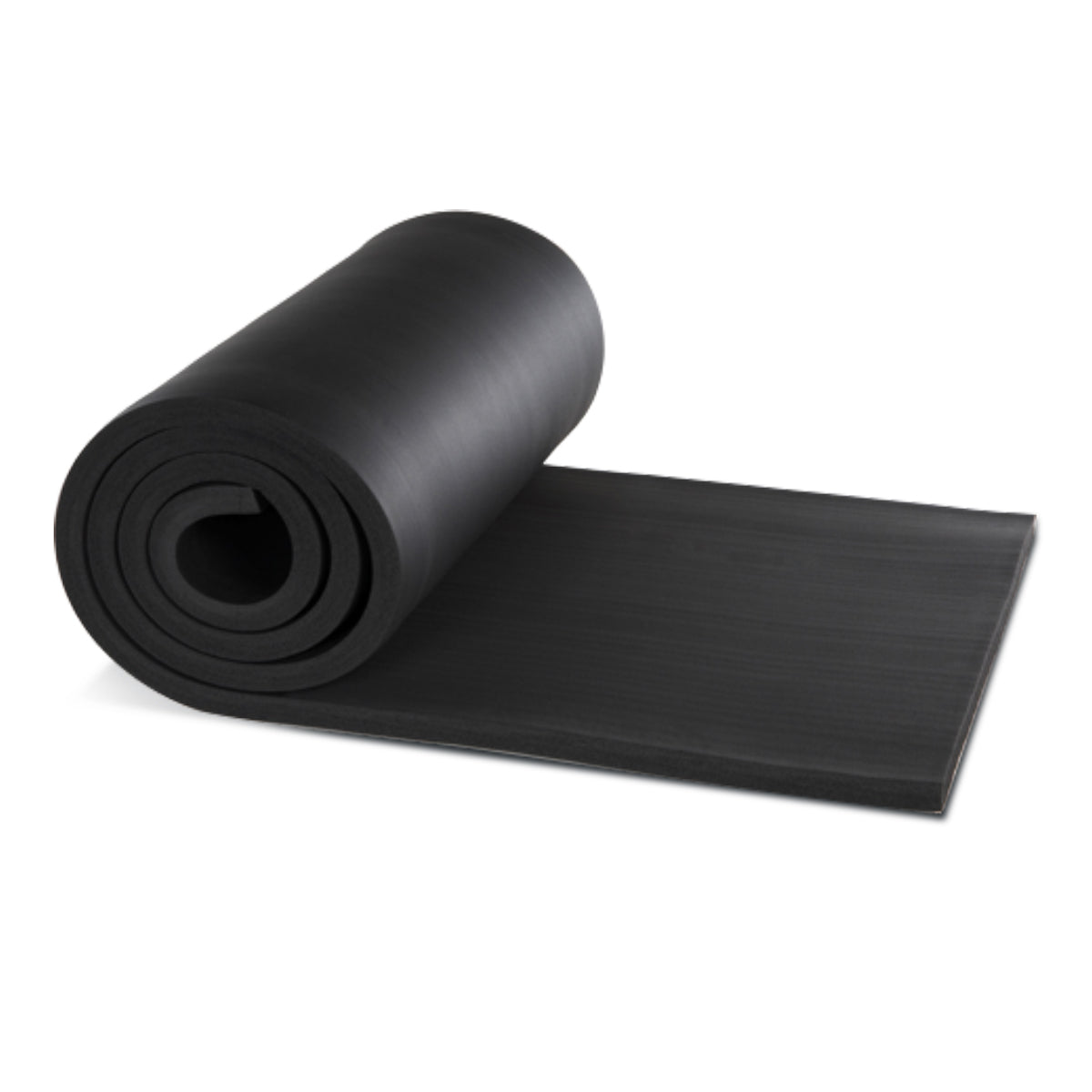

It is an elastomeric rubber based insulation material in the form of sheet with closed cell structure. It is manufactured to be used for air conditioning, heating and cooling systems.
Application

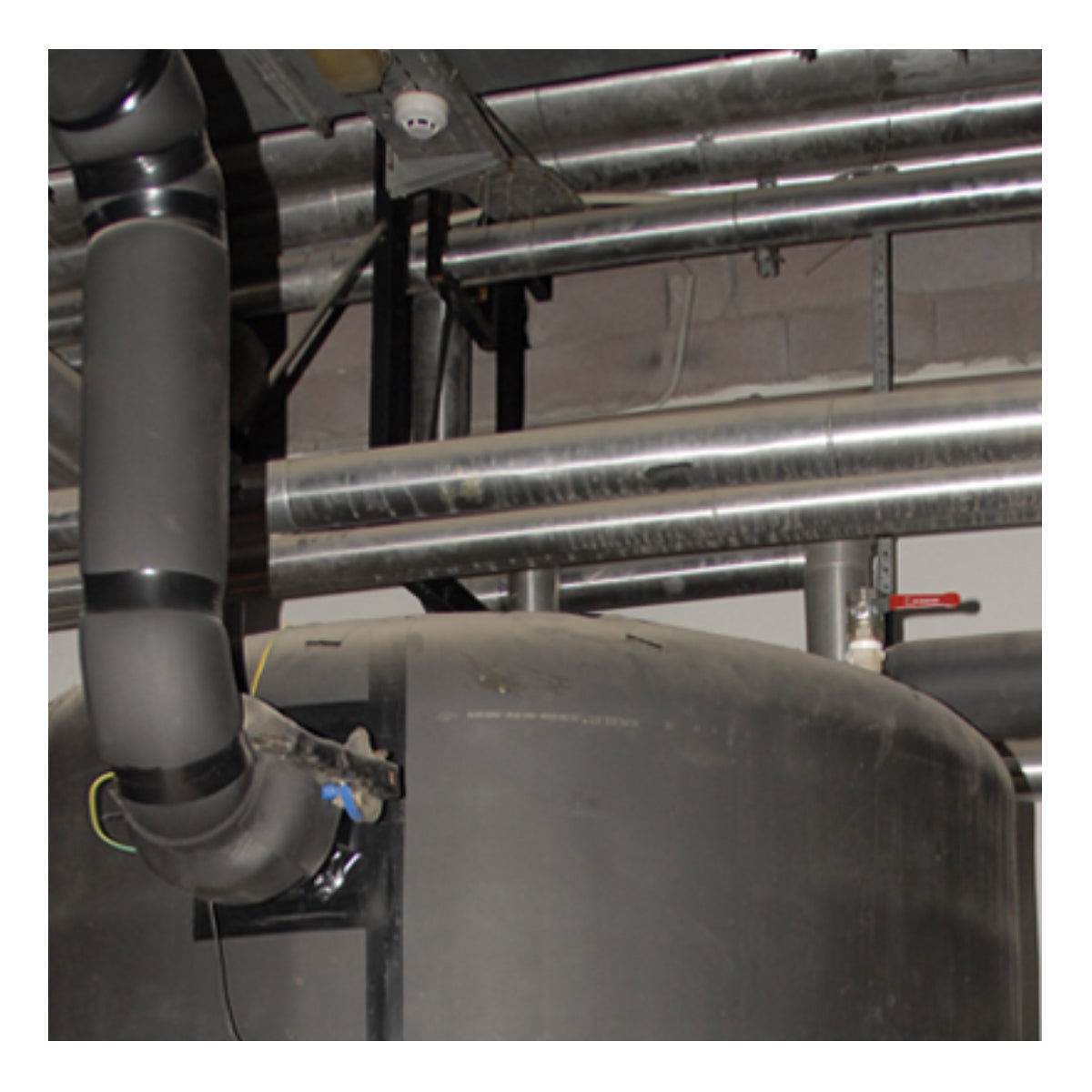

It is used on the exterior surfaces of the ducts and large diameter pipe lines in the heating, cooling and air conditioning systems for thermal insulation and condensation control purposes. The sheets are adhered to the duct surface by using a special adhesive that İzocam suggested. Joints should be tightly sealed and they should be covered with insulation tape afterwards if necessary. Taping should not result in thickness loss. For the application of self adhesive sheets there is no need to use any adhesive. The application should be protected against distruption and rupture. For the applications exposed to the sun, definitely a protective coat or a protective paint should be used. For the outdoor applications, the surface should be coated within 5 days.
Certificates
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance** | Standard | ||||||||||||
| Material | - | - | Elastomeric Rubber Foam | - | TS EN 14304 | ||||||||||||
| Lenght | l | mm | 3000 ≤ L ≤ 60000 | ± 1,5 % | EN 822 | ||||||||||||
| Width | b | mm | 1200 | 1000 | ± 2 % | EN 822 | |||||||||||
| Thickness | dD | mm | 6 ≤ dD ≤ 25 | 6 < dD ≤ 25 * | dD ≤ 6 | ±1,0 | EN 823 | ||||||||||
| 6<dD≤19 | ±1,5 | ||||||||||||||||
| dD > 19 | ±2,0 | ||||||||||||||||
| Facing | - | - | Kaplamasız | - | - | ||||||||||||
| Reaction to fire | - | - | B-s3,d0 | - | TS EN 13501-1 | ||||||||||||
| Declared Thermal Conductivity | T | °C | -10 | 0 | 20 | 40 | 60 | 80 | - | TS EN 12667 | |||||||
| λD | W/m.K | 0,033 | 0,034 | 0,036 | 0,039 | 0,041 | 0,042 | ||||||||||
| Max. Service Temperature | - | °C | -50 / 110 | - | - | ||||||||||||
| Water Vapor Diffusion Resistance Factor | µ | - | ≥ 7000 | - | EN 12086 | ||||||||||||
| Packaging Material | - | - | PE Bag | - | - | ||||||||||||
