Description

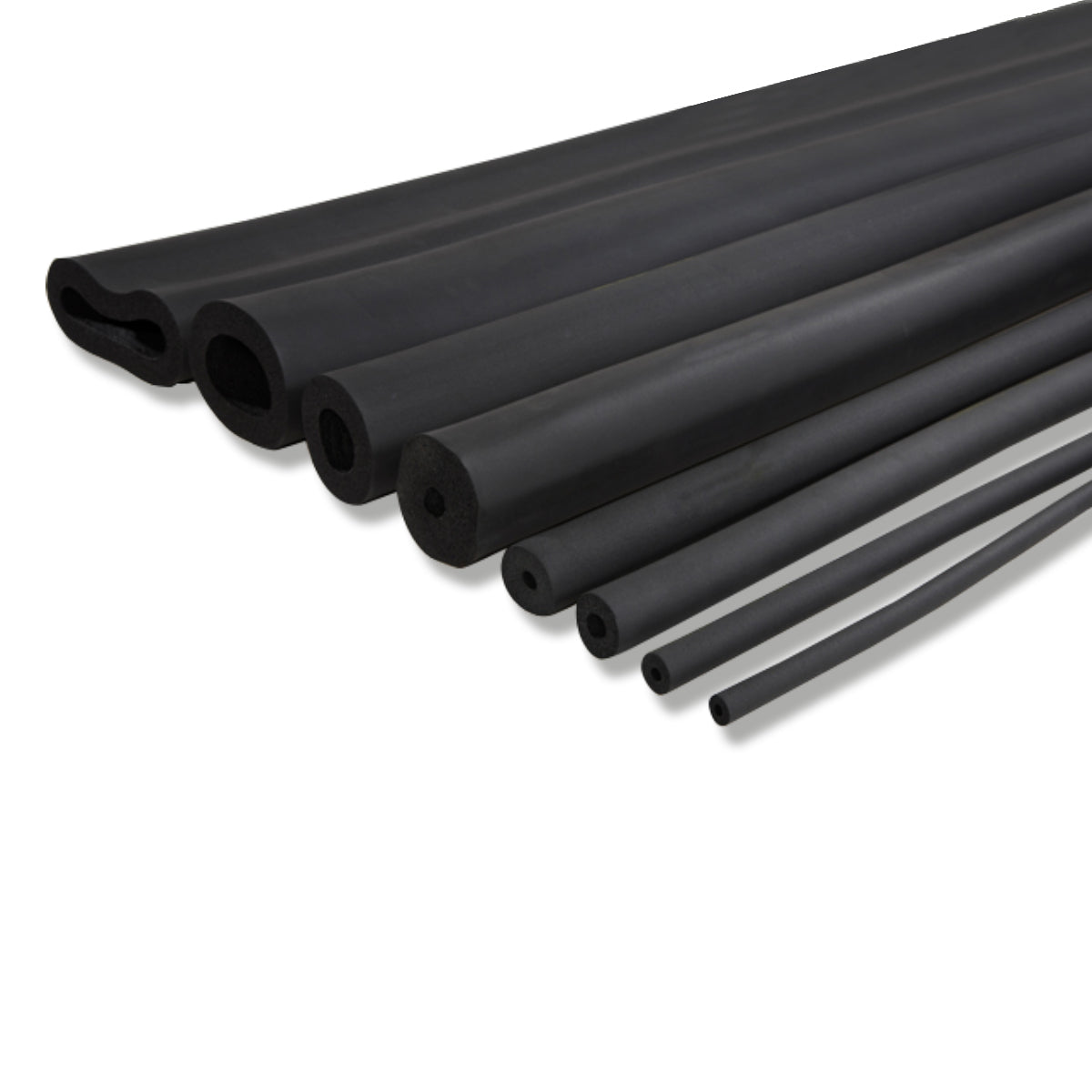

It is an elastomeric rubber based insulation material in the form of pipe with closed cell structure. It is manufactured to be used for air conditioning, heating and cooling systems.
Application

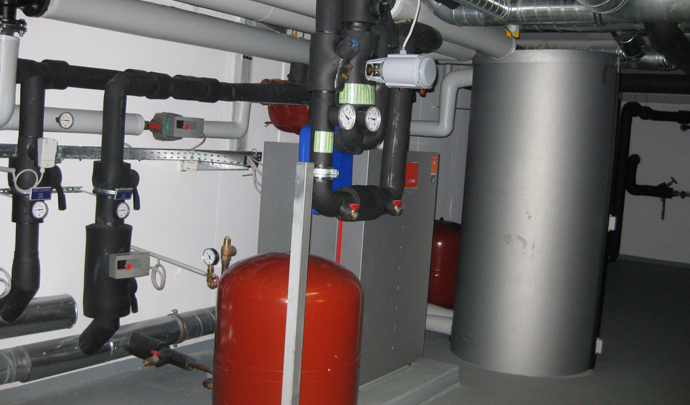

It is used at the exterior surfaces of the ducts in the heating, cooling, ventilating and air conditioning systems for thermal insulation and condensation control purposes. The pipe to be insulated and the rubber surface should fit properly and no gap should be left in between. Joints should be tightly sealed. The application should be protected against distruption and rupture. For the applications exposed to sun, a protective coat or a protective paint should be used against UV affect. For the outdoor applications, the surface should be coated within 5 days
Certificates
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance** | Standard | ||||||||||||||||
| Material | - | - | Elastomeric Rubber Foam Tube | - | TS EN 14304 | ||||||||||||||||
| Length | l | mm | 2000 ≤ L ≤ 50000 * | ± % 1,5 | TS EN 822 | ||||||||||||||||
| Inner Diameter | Di,D | mm | ≤ 100 | Di,D + 1 ≤ Di ≤ Di,D + 4 | TS EN 13467 | ||||||||||||||||
| > 100 | Di,D + 1 ≤ Di ≤ Di,D + 6 | ||||||||||||||||||||
| Thickness | dD | mm | 6 ≤ d ≤ 32 | dD ≤ 8 | ±1,0 | TS EN 823 | |||||||||||||||
| 8<dD≤18 | ±1,5 | ||||||||||||||||||||
| 18<dD≤25 | ±2,5 | ||||||||||||||||||||
| Facing | - | - | Unfaced | - | - | ||||||||||||||||
| Reaction to fire | - | - | BL-s3,d0 | - | TS EN 13501-1 | ||||||||||||||||
| Declared Thermal Conductivity | T | °C | -10 | 0 | 25 | 40 | 60 | 80 | - | TS EN 12667 | |||||||||||
| λD | W/m.K | 0,033 | 0,034 | 0,036 | 0,039 | 0,041 | 0,042 | ||||||||||||||
| Max. Service Temperature | - | °C | -50 / 105 | - | - | ||||||||||||||||
| Water Vapor Diffusion Resistance Factor | µ | - | ≥ 7000 | - | TS EN 12086 | ||||||||||||||||
| Packaging Material | - | - | Carton Box | - | - | ||||||||||||||||
