Description
Application Area

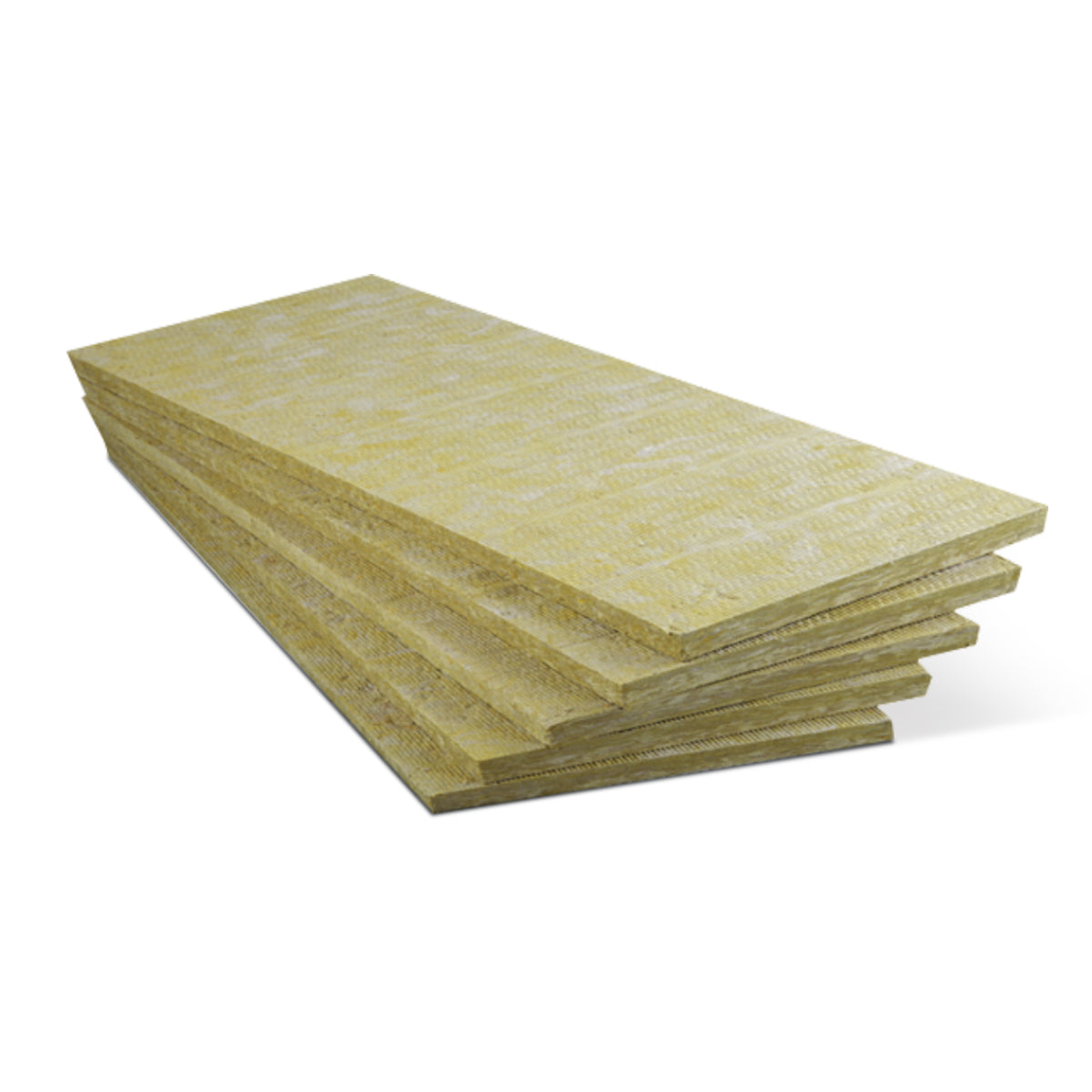

- Izocam Stone Wool Flat Roof Boards are used for thermal insulation, sound insulation and fire safety purposes under waterproofing.
- Inaccessible Flat Roof Applications: One layer of nylon cover is laid on corrugated metal roofing sheet as a vapour barrier.
- It is overlapped at the seams by 10 cm. and adhered to the surface.

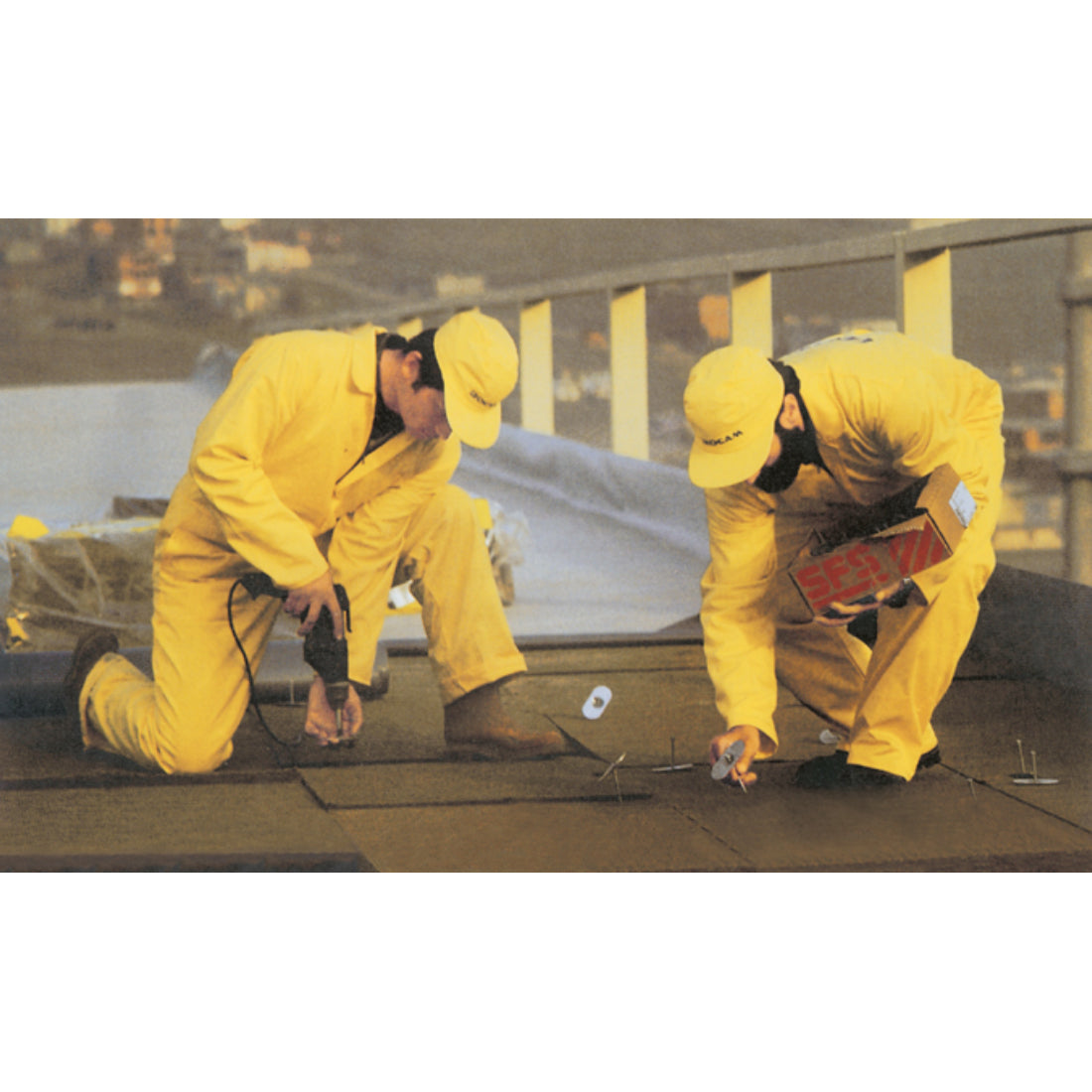

- According to thermal insulation thickness, one or two layers of Izocam Stone Wool Flat Roof Board are laid on vapour barrier layer by fastening to the corrugated metal cover with anchors which have la
- After that, Izocam Stone Wool Bituminous Flat Roof Boards are laid broadly.
- It is recommended to alternate board seams when two layer application is preferred.
- On top of that, waterproofing membrane (bituminous membrane, pvc, tpo, etc.) is applied.
- If there is any concrete or autoclaved aerated (AAC) roof panels, vapour barrier membranes are spread on and adhered to them.
- On top of that, Izocam Stone Wool Bituminous Flat Roof Boards are laid broadly and are fastened with anchor with wide washers
- Then waterproofing cover is applied on top.
- Then vapour barrier membrane is placed on and adhered to it.
- Waterproofing cover is applied on top and a layer of felt is laid on.
- Accessible Flat Roof Applications: Levelling concrete is applied on concrete or AAC roof panels.
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance | Standard | ||||||||
| Material | - | - | Stone Wool | - | TS EN 13162 | ||||||||
| Density | ρ | kg/m3 | 150 | +/-10% | - | ||||||||
| Width | w | mm | 600 | +/-1,5% | TS EN 822 | ||||||||
| Length | l | mm | 1200 | +/-2% | TS EN 822 | ||||||||
| Facing | - | - | Unfaced | - | - | ||||||||
| Thickness | Unfaced | t | mm | 30 | 40 | 50 | 60 | 80 | 100 | 120 | T4 * | TS EN 823 | |
| Reaction to Fire | - | - | A1 | - | TS EN 13501-1 | ||||||||
| Declared Thermal Conductivity (10 °C) | λD | W/mK | 0.039 | - | TS EN 12667 / 12939 | ||||||||
| Thermal Resistance | RD | m2.K/W | 0.75 | 1.00 | 1.25 | 1.50 | 2.05 | 2.55 | 3.05 | - | TS EN 13162 | ||
| Water Vapor Diffusion Resistance Coefficient** | µ | - | 1 | - | TS EN 12086 | ||||||||
| Compressive Strength | σ10 | kPa | 25 | 40 | 55 | 65 | 75 | 85 | 100 | - | TS EN 826 | ||
| Short Term Water Absorption | Wp | kg/m2 | max 1 | - | TS EN 1609 | ||||||||
| Long Term Water Absorption | Wlp | kg/m2 | max 3 | - | TS EN 12087 | ||||||||
| Packaging Material | - | - | PE Film | - | - | ||||||||
| Other Information | Yellow/black glass tissue and aluminium foil faced are available. | ||||||||||||
Shipping & Delivery
Shipping is free for orders of 120 m² and above. For orders below 120 m², the shipping cost will be calculated accordingly. Please contact us for more details.
