Description

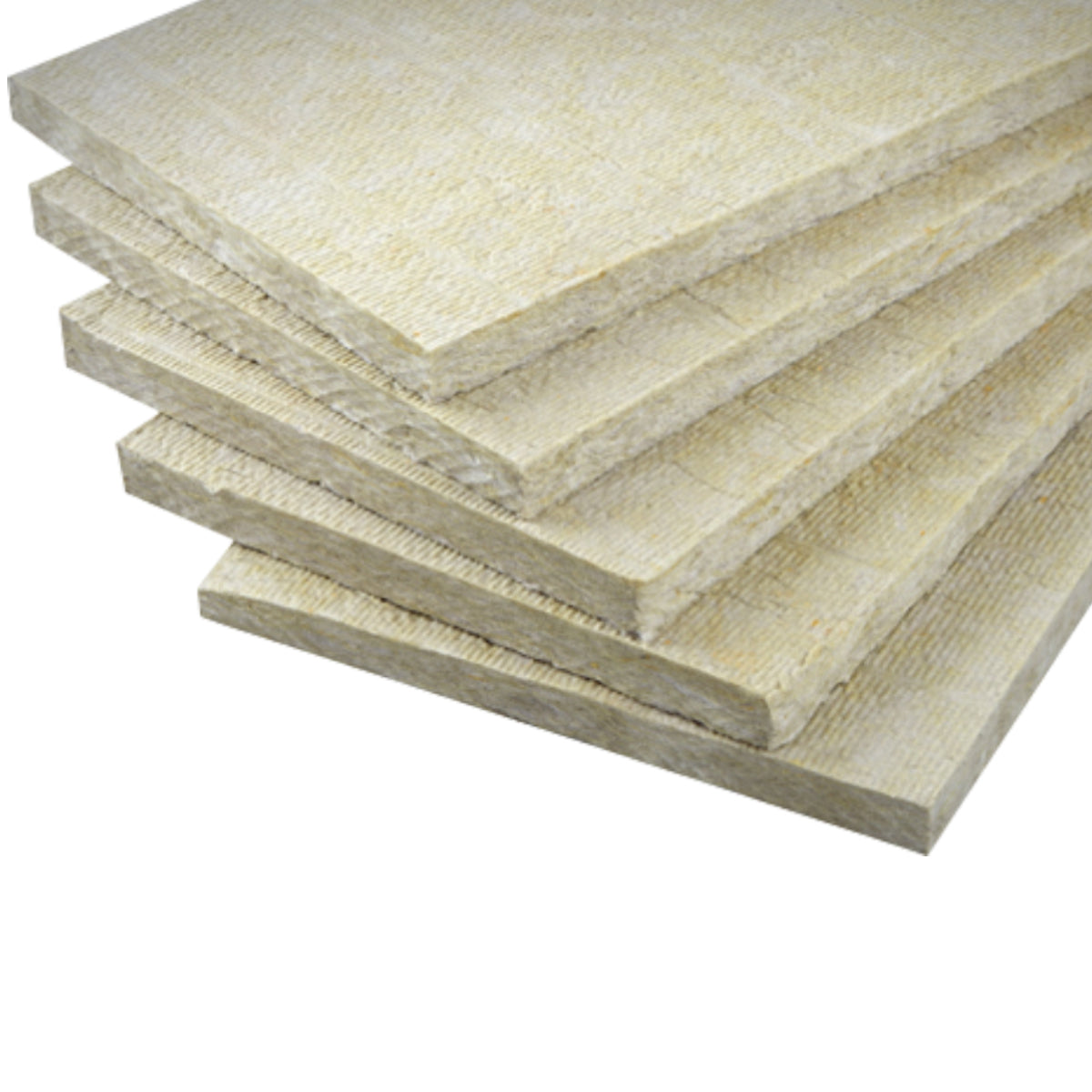

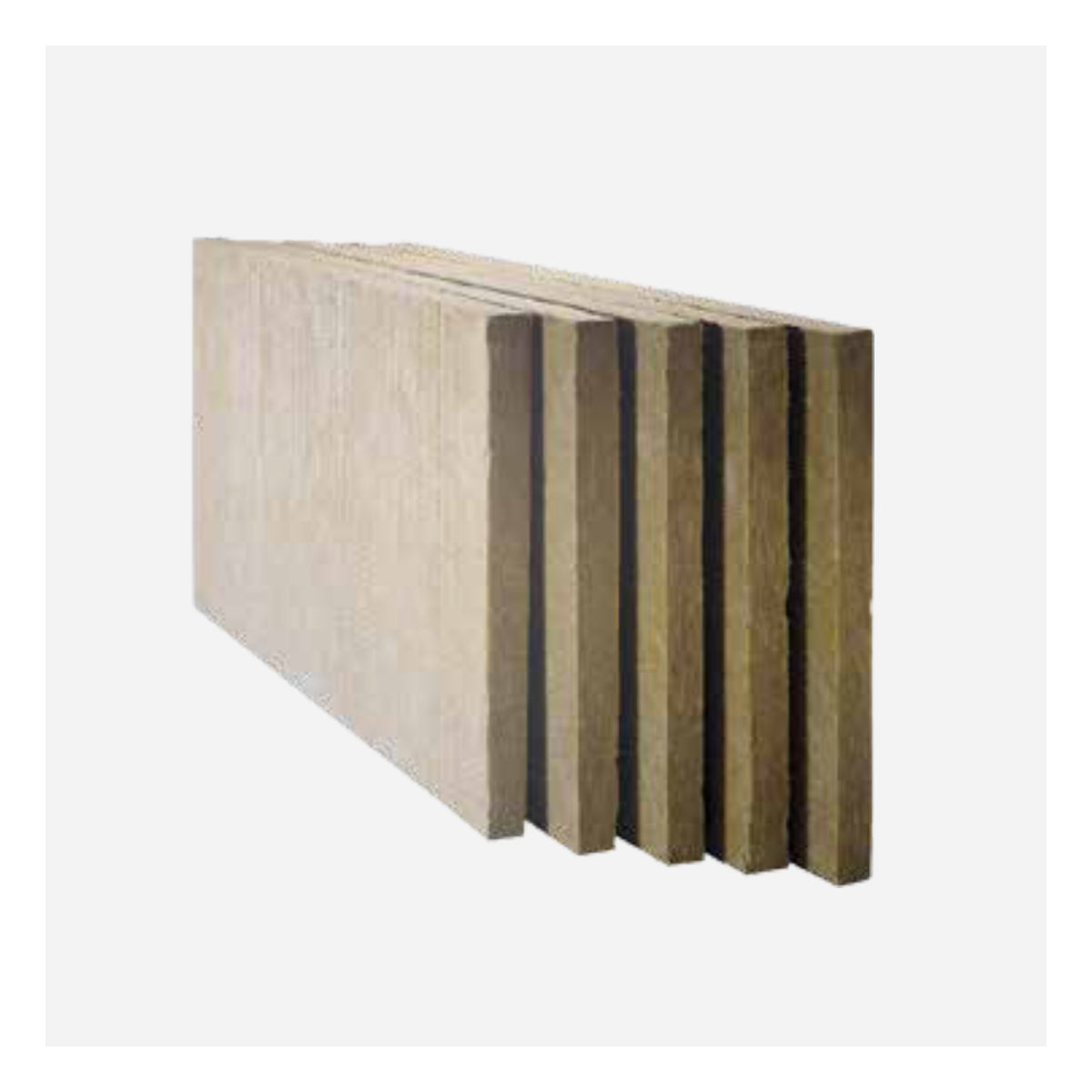

Izocam Facade Board is a stone wool board either unfaced or with only one side faced with aluminium foil or black glass tissue. It is utilized at curtain wall systems, under the glass, granite, marble and aluminium wall cladding for thermal insulation, sound insulation and fire safety purposes.
Application Area
-

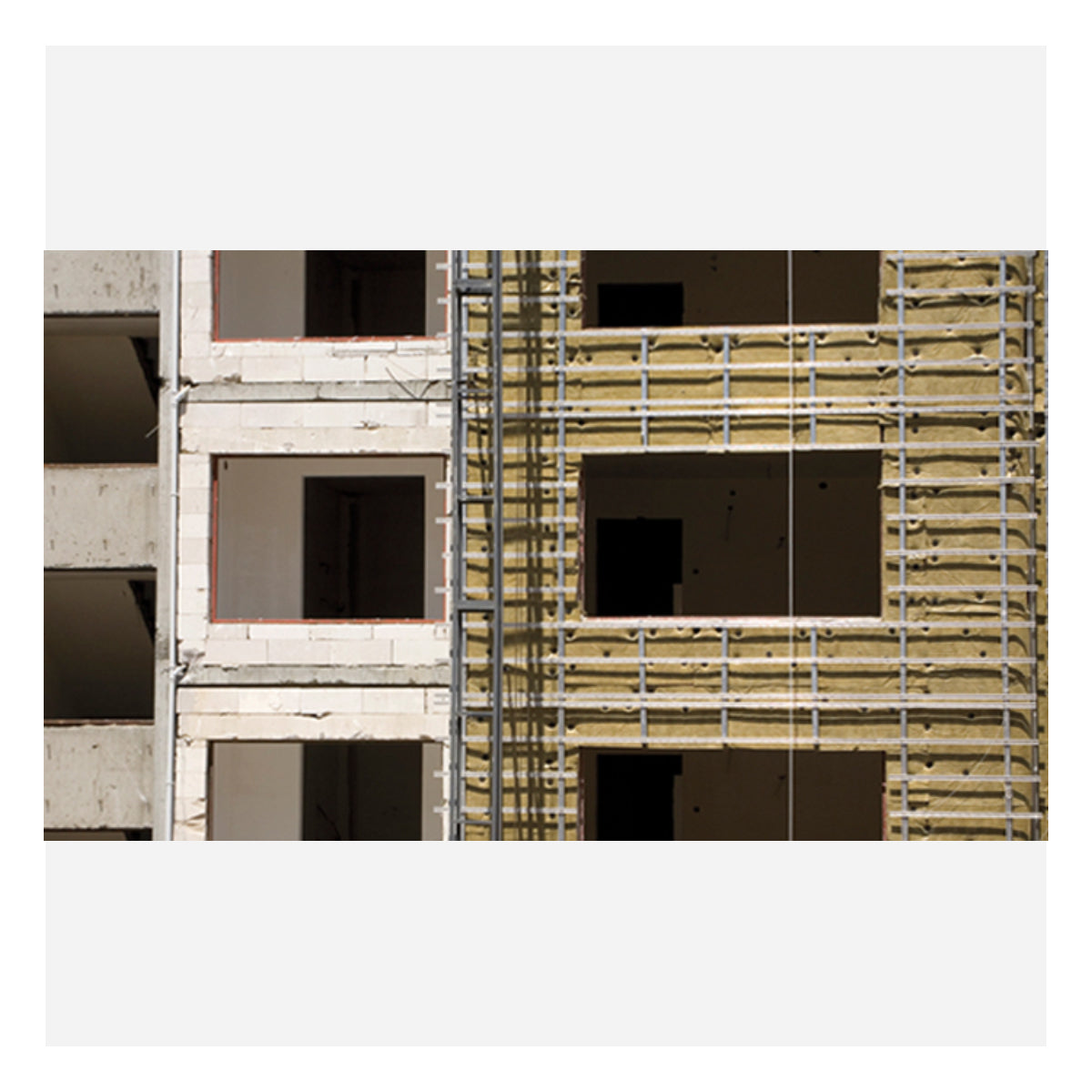

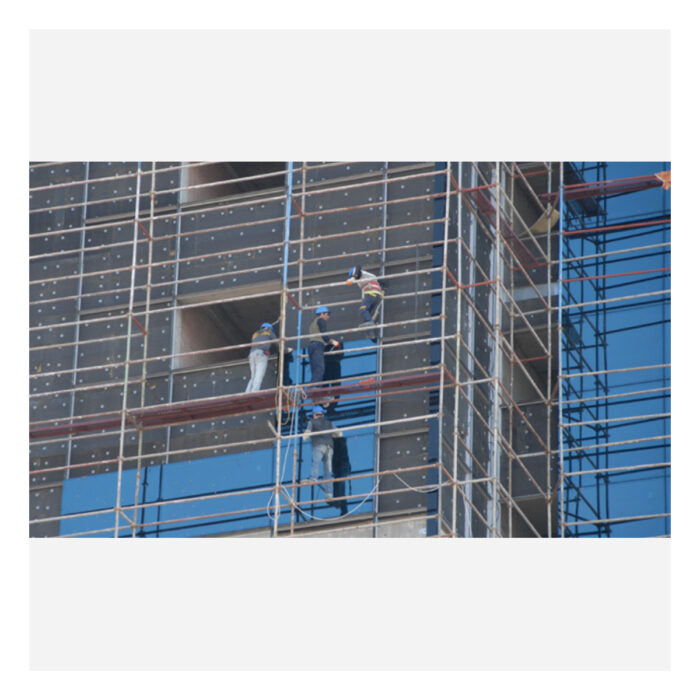

The boards can be placed in between the structural profiles fastened to the concrete surface by anchor members or they can also be installed to the facade wall by means of anchors.
-
For prefabricated panel as well, the boards are placed in to the panels at the plant and then they are installed to the concrete surfaces as ready-to-use elements at the construction site.
Technical Specifications
| Properties | Symbol | Unit | Description | Tolerance | Standard | |||||||
| Material | - | - | Stone Wool | - | TS EN 13162 | |||||||
| Density | ρ | kg/m3 | 52 - 90 | +/-10% | - | |||||||
| Width | w | mm | 600 | +/-1,5% | TS EN 822 | |||||||
| Length | l | mm | 1200 | +/-2% | TS EN 822 | |||||||
| Thickness | t | mm | 30 | 40 | 50 | 60 | 80 | 100 | 120 | T4 * | TS EN 823 | |
| Facing | - | - | Unfaced | - | - | |||||||
| Reaction to fire | - | - | A1 | - | TS EN 13501-1 | |||||||
| Squareness | Sb | mm/m | max.5 | - | TS EN 824 | |||||||
| Flatness | Smax | mm | max.6 | - | TS EN 825 | |||||||
| Dimensional Stability | Δεd | % | max.1 | - | TS EN 1604 | |||||||
| Declared Thermal Conductivity (10 °C) | ʎD | mW/mK | 0.035 | - | TS EN 12667/12939 | |||||||
| Thermal Resistance | RD | m2.K/W | 0.85 | 1.10 | 1.40 | 1.70 | 2.25 | 2.85 | 3.40 | - | TS EN 13162 | |
| Water Vapor Diffusion Resistance Coefficient ** | µ | - | 1 | - | TS EN 12086 | |||||||
| Short Term Water Absorption | Wp | kg/m2 | max. 1 | - | TS EN 1609 | |||||||
| Long Term Water Absorption | Wlp | kg/m2 | max.3 | - | TS EN 12087 | |||||||
| Packaging Material | - | - | PE Film | - | - | |||||||
| Other Information | Boards can be coated with yellow/black glass tissue and aluminium foil.
Maximum service temperature on the side faced with glass tissue is 200 °C and on the side faced with aluminium foil is 90°C. |
|||||||||||
Shipping & Delivery
Shipping is free for orders of 120 m² and above. For orders below 120 m², the shipping cost will be calculated accordingly. Please contact us for more details.
